The Design Load Case (DLC) Generator is geared towards marine energy design conditions. In essence, the tool is intended to help marine energy developer obtain design load conditions, including 1- and 50-year sea states. These return periods are requirements according to IEC TS 62600-2.

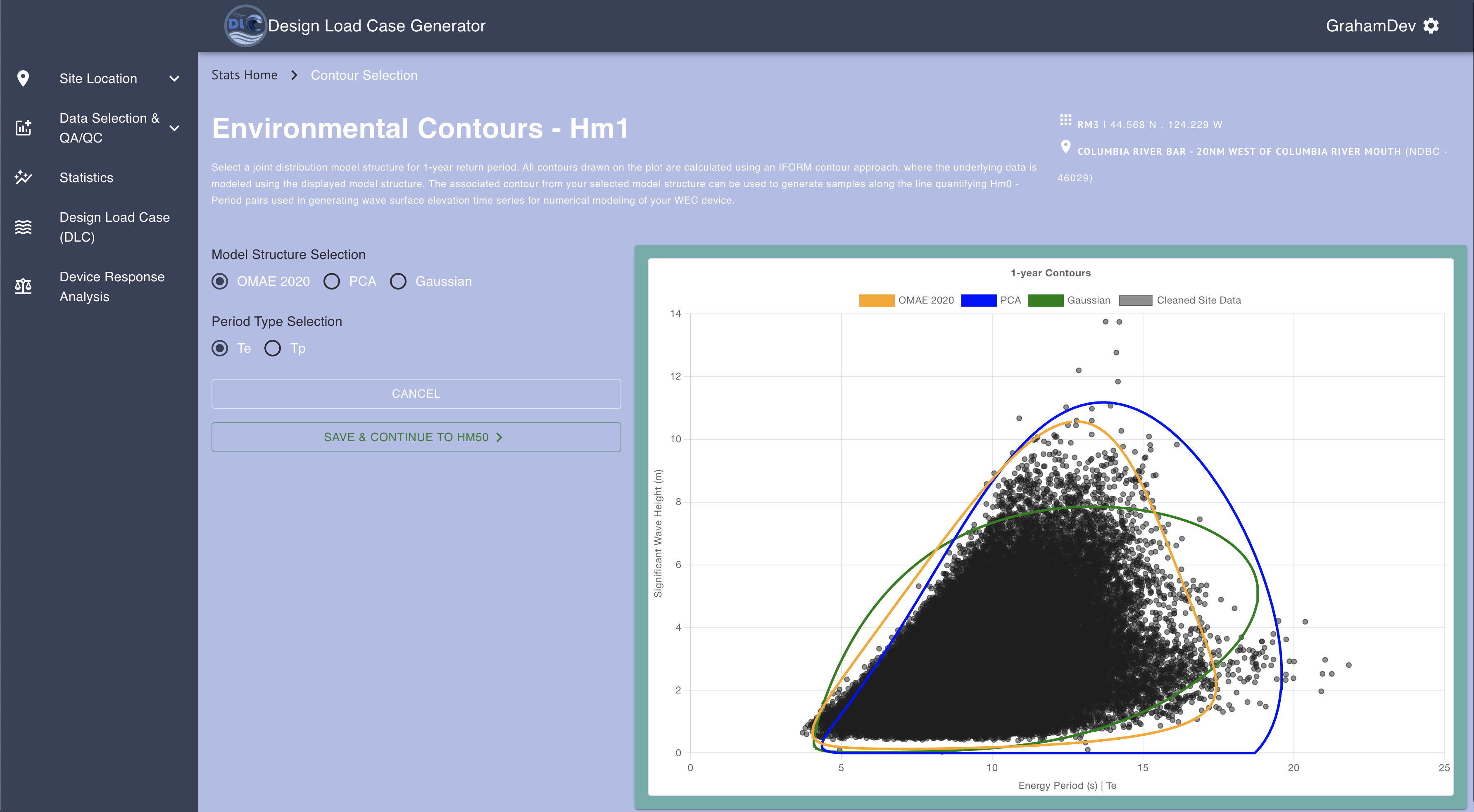

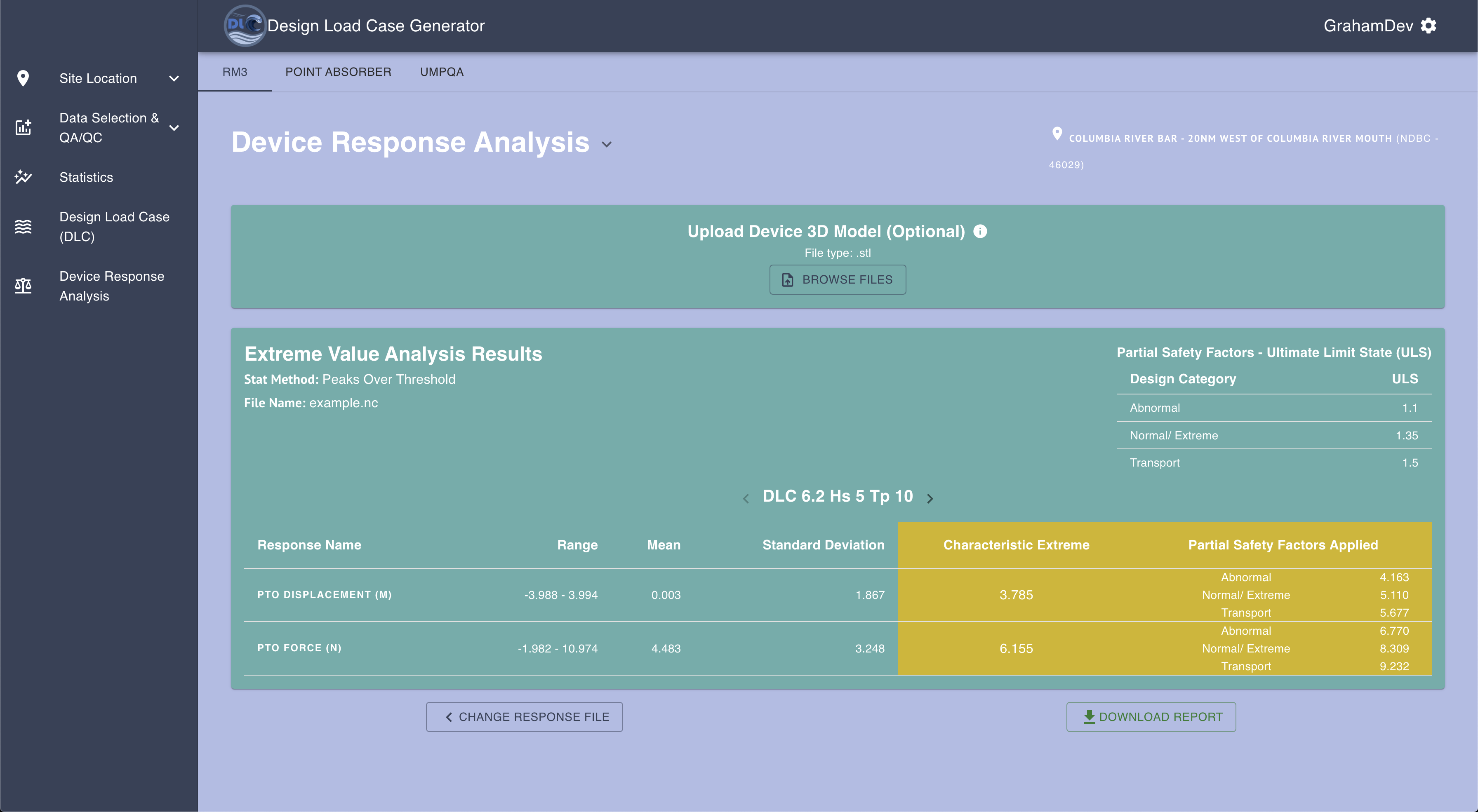

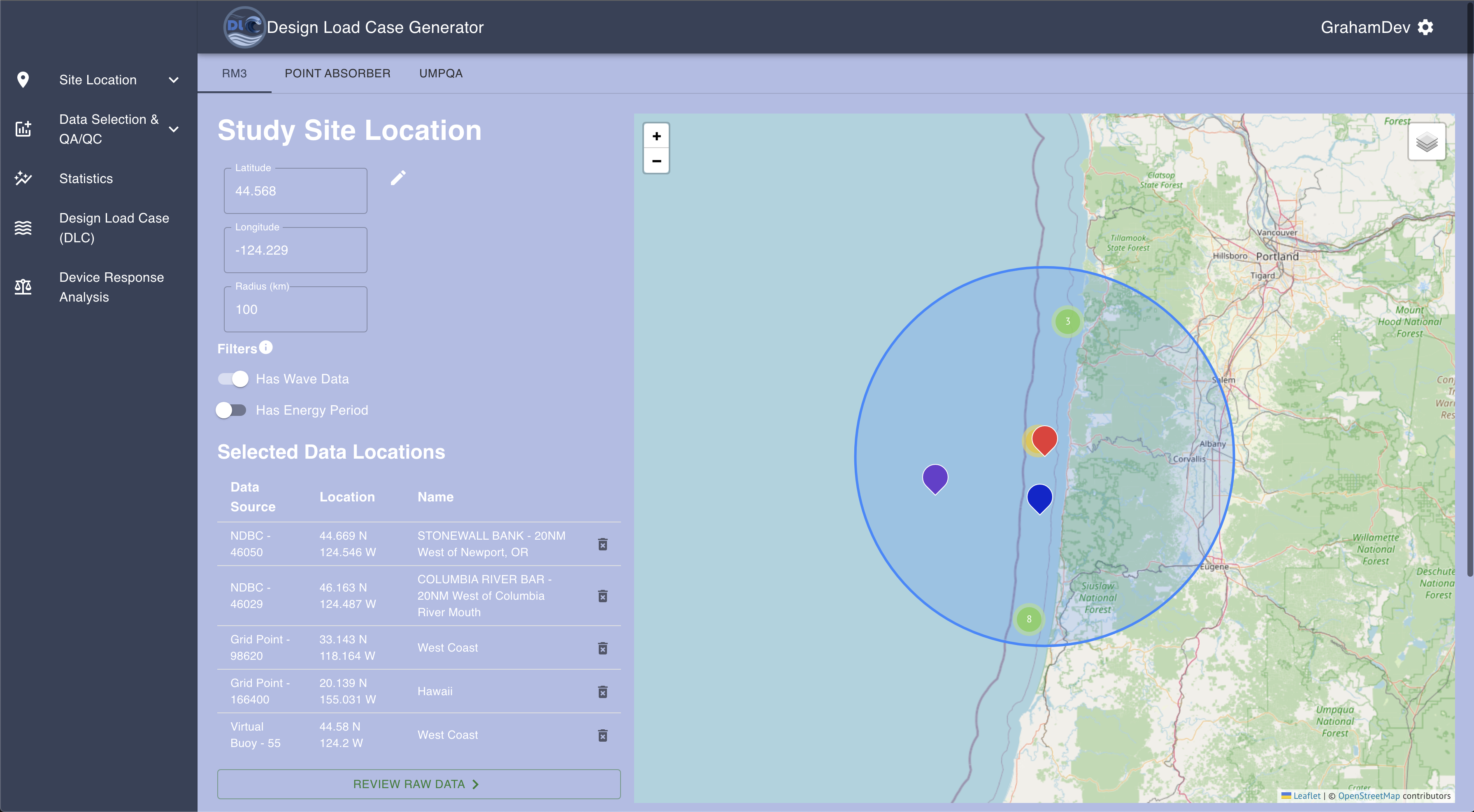

Mapping page image Contours page image Sea state realization page image Response analysis page image

The Tool

  1. Collects site data from over 7.9 million unique sources of modeled and measured data.
  2. Uses quality-controlled site data to quantify stochastic sea states through validated and accepted statistical approaches.
  3. Generates irregular surface elevation time series data from spectral representations of a sea state for use in numerical modelling or wave tank testing.
  4. Performs extreme response analysis on the results of tank testing or numerical modeling to quantify extreme characteristics.

This documentation section does not cover the theory behind the scenes, please see the theory documentation for details on implementations and references.
